Admin console

clients/admin is the operator-facing app. It’s where support engineers reset passwords, ops sees the audit trail, billing reviews tenant invoices, and SuperAdmins start impersonation sessions. It’s not customer-facing — it has no per-tenant theming; the chrome stays in the kit’s own palette (operators still get a light/dark toggle).

Tech stack

All pinned in clients/admin/package.json.

Page inventory

clients/admin/src/pages/
├── audits/         Audit trail query UI (filter, detail side sheet)
├── auth/           Forgot / reset password, email confirmation
├── billing/        Plans + invoices (list + detail)
├── health/         System health probes
├── impersonation/  Grant list — active + historical, revoke
├── notifications/  Inbox, mark-read, real-time push
├── roles/          Role CRUD + permission editor
├── settings/       Profile, security (2FA), sessions, appearance
├── tenants/        Tenant CRUD + branding editor + provisioning status
├── users/          User search / detail / impersonate action
├── webhooks/       Subscription management + delivery log

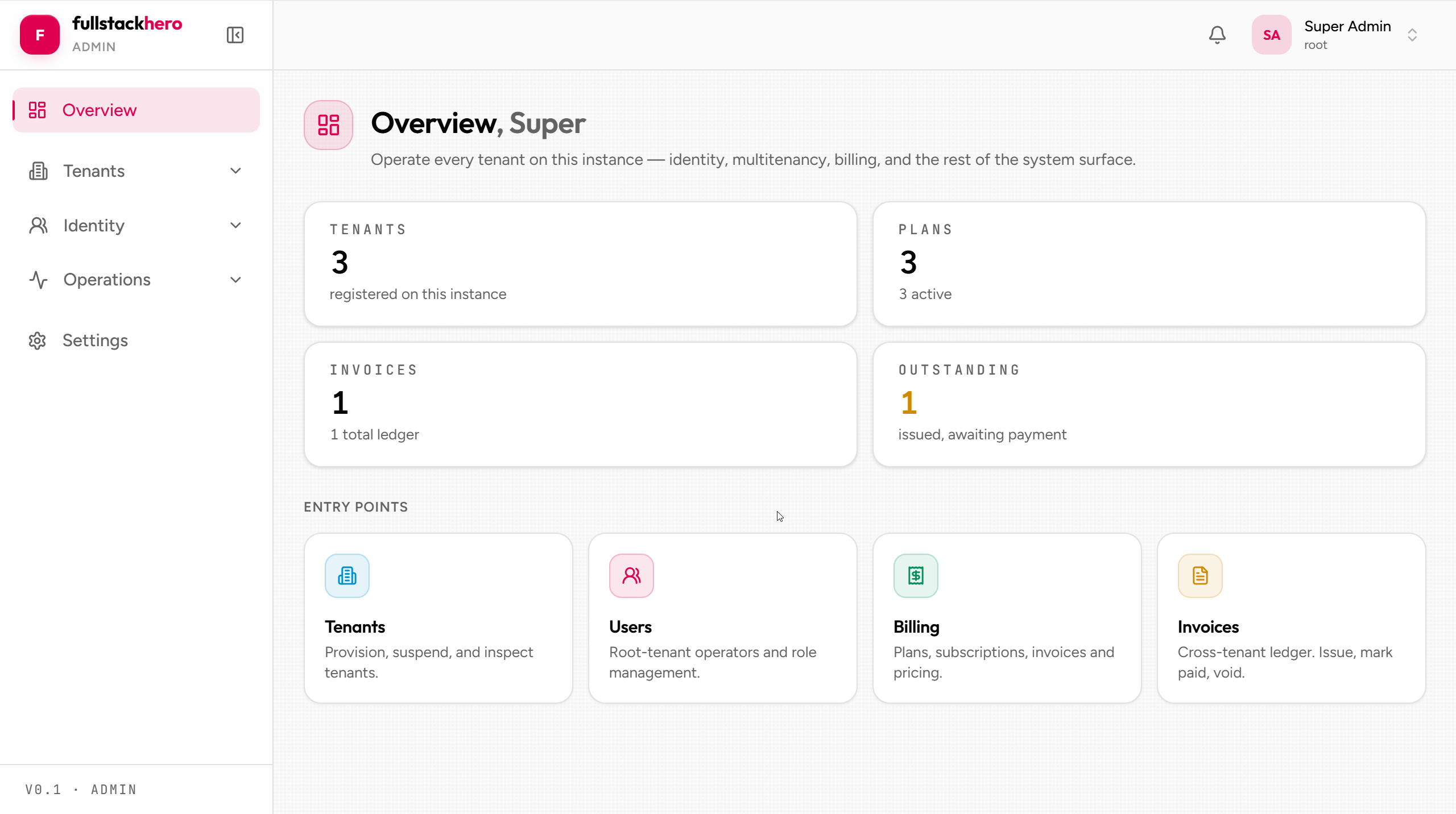

├── dashboard.tsx   Operator landing page
└── login.tsx       Tenant + email + password sign-in

The route definitions live in clients/admin/src/routes.tsx; pages beyond the shell + landing page are lazy-loaded so each route becomes its own bundle chunk.

Authentication

clients/admin/src/auth/ owns the auth surface:

• auth-context.tsx — React context providing the signed-in user, login, logout, and refreshPermissions.
• api.ts — issueToken() wraps the login endpoint.
• token-store.ts — wraps localStorage for access + refresh tokens and the active tenant.
• jwt.ts — base64url decode + claim parsing (no library needed for read-only access).
• protected-route.tsx — route guard that requires authentication; redirects to /login if not.
• route-guard.tsx — permission-aware wrapper; renders <ForbiddenView> if the user lacks the required permissions.
• use-auth.ts — hook for accessing the context from components.
• inactivity.ts + use-inactivity-timeout.ts — idle auto sign-out (see below).

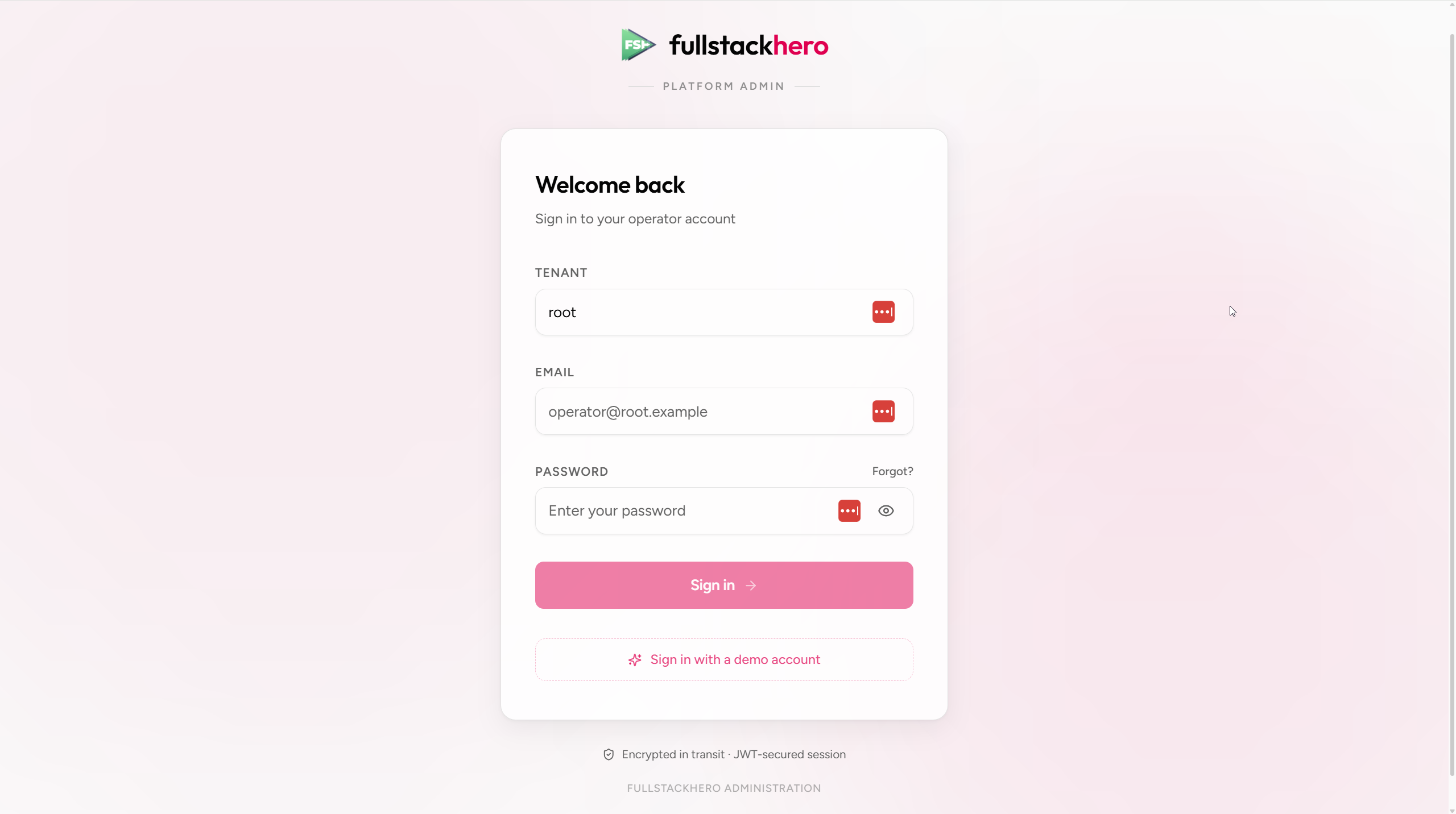

Login flow:

const { login } = useAuth();
await login({ email, password, tenant });
// Calls POST /api/v1/identity/token/issue with the `tenant` header (and an
// X-FSH-App: admin header so the API can enforce the operator-app boundary),
// stores both tokens, then navigates to the post-login destination.

Token refresh is reactive, not timer-based: when any API call returns 401, the API client runs a single-flight refresh (POST /api/v1/identity/token/refresh) and retries the original request. At boot, if the stored access token is missing or expired but a refresh token exists, the auth context attempts one silent refresh before rendering protected routes. If a refresh fails (refresh token expired / revoked), the user is signed out and redirected to /login.

Inactivity auto sign-out

The admin console signs operators out after 10 minutes of idle time, preceded by a 60-second warning countdown. Both durations come from /config.json (inactivityIdleMs, inactivityWarningMs), and the last-activity timestamp is shared across tabs via a localStorage key (fsh.lastActivity) so one active tab keeps every tab alive.

Permission-gated UI

Endpoints are gated server-side by .RequirePermission(). The admin console mirrors that gating client-side so users don’t see actions they can’t perform:

import { useAuth } from '@/auth/use-auth';

const { user } = useAuth();
const can = (perm: string) => user?.permissions.includes(perm) ?? false;

return (
  <>
    {can(IdentityPermissions.Users.Update) && <Button onClick={openEditUser}>Edit</Button>}
    {can(IdentityPermissions.Impersonation.Start) && <Button onClick={impersonate}>Impersonate</Button>}
  </>
);

The JWT only carries role names — effective permissions are resolved server-side and fetched from GET /api/v1/identity/permissions after sign-in, then cached on the auth context. If the user gains a permission server-side (an admin updates their role), refreshPermissions() picks it up without a re-login. The permission string constants live in clients/admin/src/lib/permissions.ts, mirroring the server registries.

For whole-route gating, wrap the route’s element in <RouteGuard>:

{
  path: "impersonation",
  element: (
    <RouteGuard perms={[IdentityPermissions.Impersonation.View]}>
      <ImpersonationListPage />
    </RouteGuard>
  ),
}

Unauthorised users see a <ForbiddenView /> instead of the route content. While the permission fetch is still in flight, the guard renders a quiet loading state rather than flashing “access denied”.

API integration

clients/admin/src/api/ carries one file per backend module. Each file exposes typed functions wrapping the relevant endpoints with apiFetch — the kit’s hand-written fetch wrapper (no codegen, no Axios):

import { apiFetch } from "@/lib/api-client";

export function startImpersonation(input: StartImpersonationInput): Promise<ImpersonationResponse> {
  return apiFetch<ImpersonationResponse>("/api/v1/identity/impersonation/start", {
    method: "POST",
    body: JSON.stringify(input),
  });
}

Pages consume them via TanStack Query:

const startMut = useMutation({
  mutationFn: startImpersonation,
  onSuccess: (response) => { /* open new tab with the impersonation token */ },
});

apiFetch (clients/admin/src/lib/api-client.ts):

• Adds the Authorization: Bearer ... header from the token store.
• Adds the tenant header (the stored tenant, or the configured default) — callers can override it to scope a request to a specific tenant, which the admin’s branding editor uses.
• Handles 401 by running a single-flight token refresh and retrying the original request once; if refresh fails, the session is cleared.
• Applies a 30-second default timeout via AbortSignal, merged with any caller-supplied signal.
• Surfaces ProblemDetails responses as a typed ApiRequestError (status + title + detail + field errors) that React Query can render in the UI.

Realtime — notifications

clients/admin/src/realtime/realtime-context.tsx opens one shared SignalR connection to /api/v1/realtime/hub after sign-in (the SignalR client is dynamically imported so unauthenticated pages never download it). Components subscribe through a hook instead of touching the connection directly:

// clients/admin/src/components/notifications/notification-bell.tsx (simplified)
useRealtimeEvent<NotificationDto>("NotificationCreated", (notification) => {
  queryClient.setQueryData(["notifications"], (prev) =>
    prev ? [notification, ...prev] : [notification]);
  toast.info(notification.title);
});

The admin console only wires NotificationCreated today — the dashboard’s variant of the same context carries the chat + presence traffic. A bell icon in the top bar shows unread count + a popover with the recent items.

The impersonation flow in the UI

This is the admin console’s most-asked-about feature. Full walkthrough lives in the operator impersonation guide; short version:

1. Find the user via Users → search.
2. Open the user detail page; click Impersonate.
3. Fill duration + reason; click Start.
4. A new tab opens at the tenant dashboard, authenticated as the impersonated user. The short-lived token is handed off via the URL hash — the admin app never installs it locally.
5. Use the dashboard exactly as the user would.
6. Return to admin; revoke the grant (from the Impersonation page or the inline active-grants card) to end the session server-side. The dashboard tab loses the session on its next API call and lands on a graceful “impersonation ended” page.

Tenant branding editor

The tenant detail page carries a branding card where root operators edit a tenant’s TenantTheme — the light + dark colour palettes and brand asset URLs (logo, dark logo, favicon). Typography and layout fields exist on the server-side DTO but are intentionally left out of the v1 editor. The admin console itself stays themed in the kit’s own palette (no per-tenant chrome for operator tools).

See Theming for the full palette + asset surface.

Notable pages

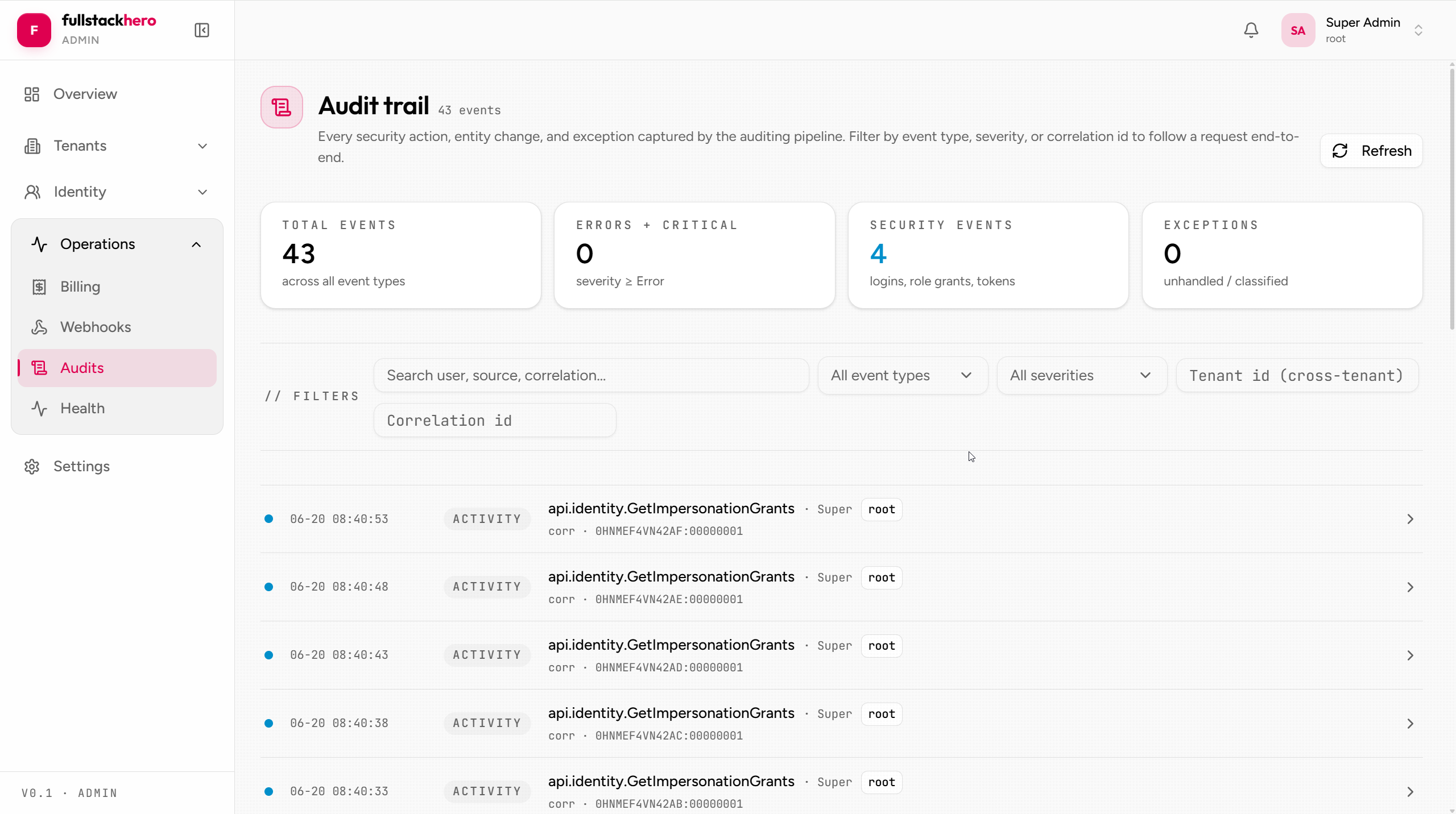

Audits

A full audit query UI with filters and a debounced search box; each row opens a detail side sheet with the captured payload (masked fields stay masked).

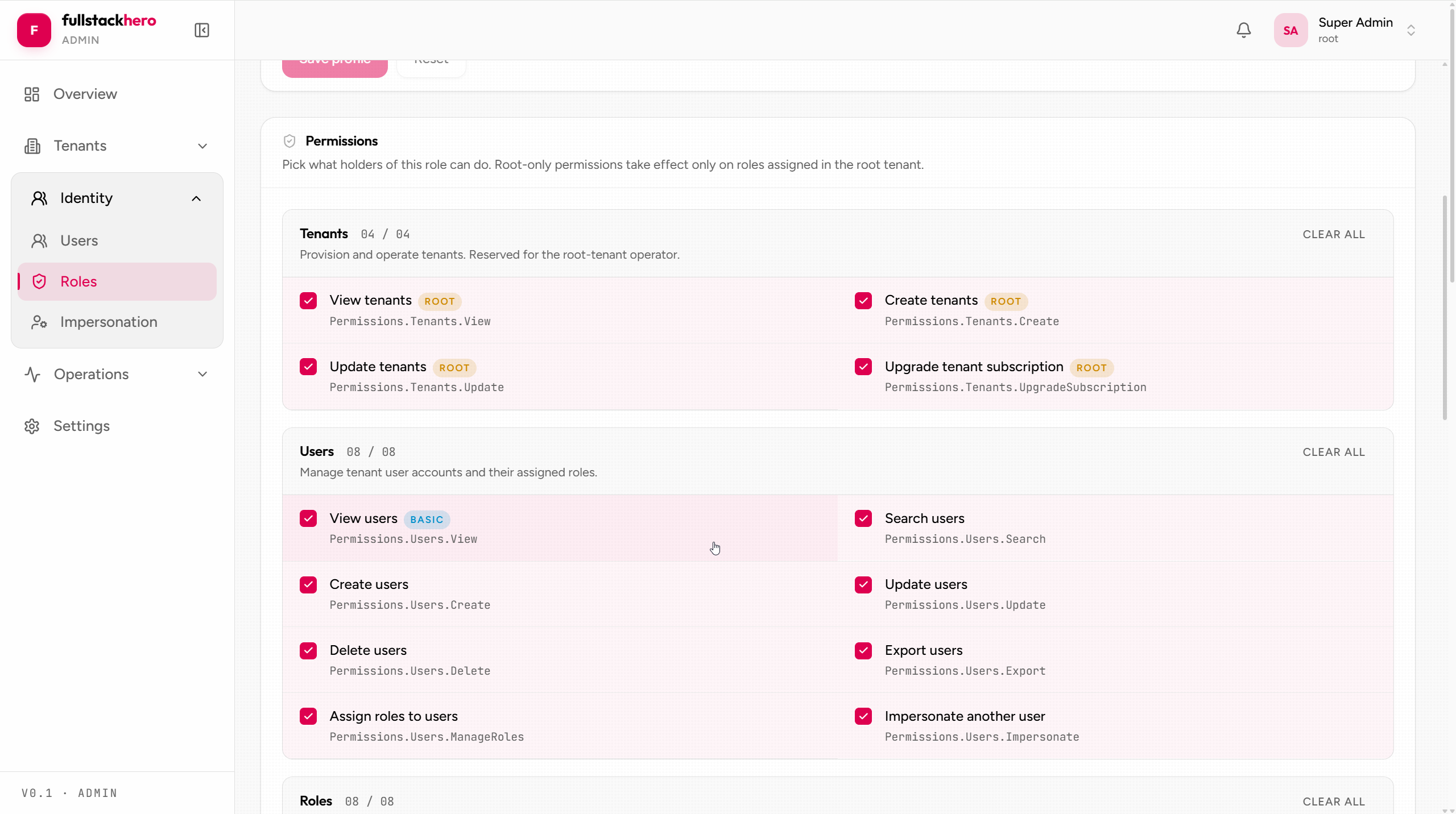

Roles + permission editor

Permission assignment per role, grouped by resource with per-action toggles and a bulk group toggle.

Webhooks

Subscription list with delivery log per subscription — every attempt, response code, error message.

Local development

cd clients/admin
npm install
npm run dev               # http://localhost:5173 with HMR

The Vite dev server proxies /api, /health, /openapi, and /scalar to the backend — http://localhost:5030 by default, overridable with a VITE_API_BASE_URL env var (this var only steers the dev proxy target; it is never baked into a build). Runtime configuration — API base URL, default tenant, inactivity timings — comes from public/config.json, fetched once at boot before React mounts.

The kit’s Aspire AppHost wires all of this automatically when you run dotnet run --project src/Host/FSH.Starter.AppHost — the API, admin, and dashboard all come up together.

Build + deploy

npm run build              # tsc -b + vite build → dist/ contains static assets

The dist/ folder is a static site — drop it on any static host (Nginx, Vercel, Netlify, S3+CloudFront). clients/admin/Dockerfile ships an Nginx-based container that serves the built assets and renders /config.json from environment variables (FSH_API_URL, FSH_DEFAULT_TENANT, FSH_DASHBOARD_URL) via envsubst at startup — one image, every environment. See Local development.
